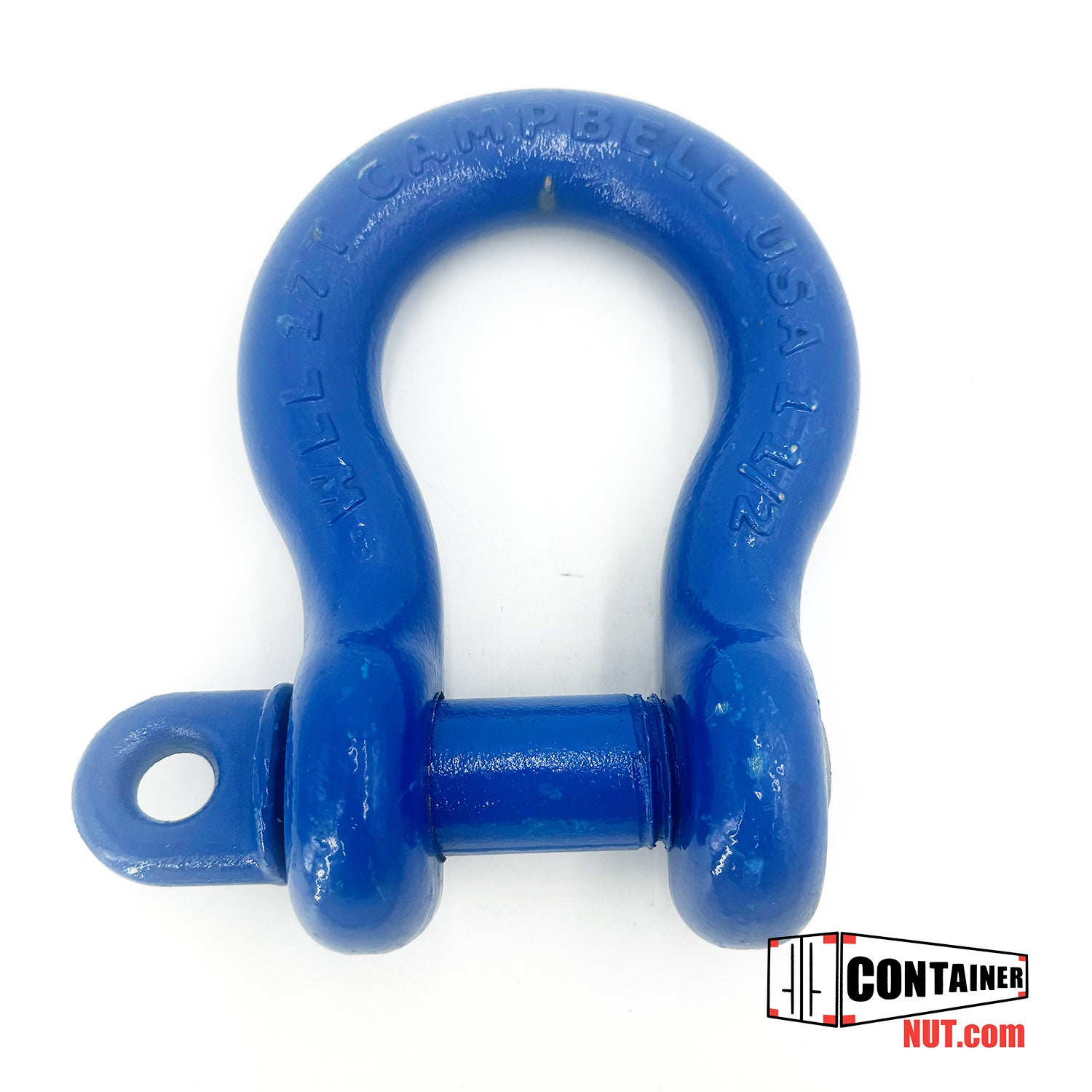

• A blue Anchor Shackle with threaded pin rests on a white background. Embossed text reads "Campbell USA" along with the numbers "1-1/2". The bottom right corner features the logo and text "CONTAINERNUT.COM".

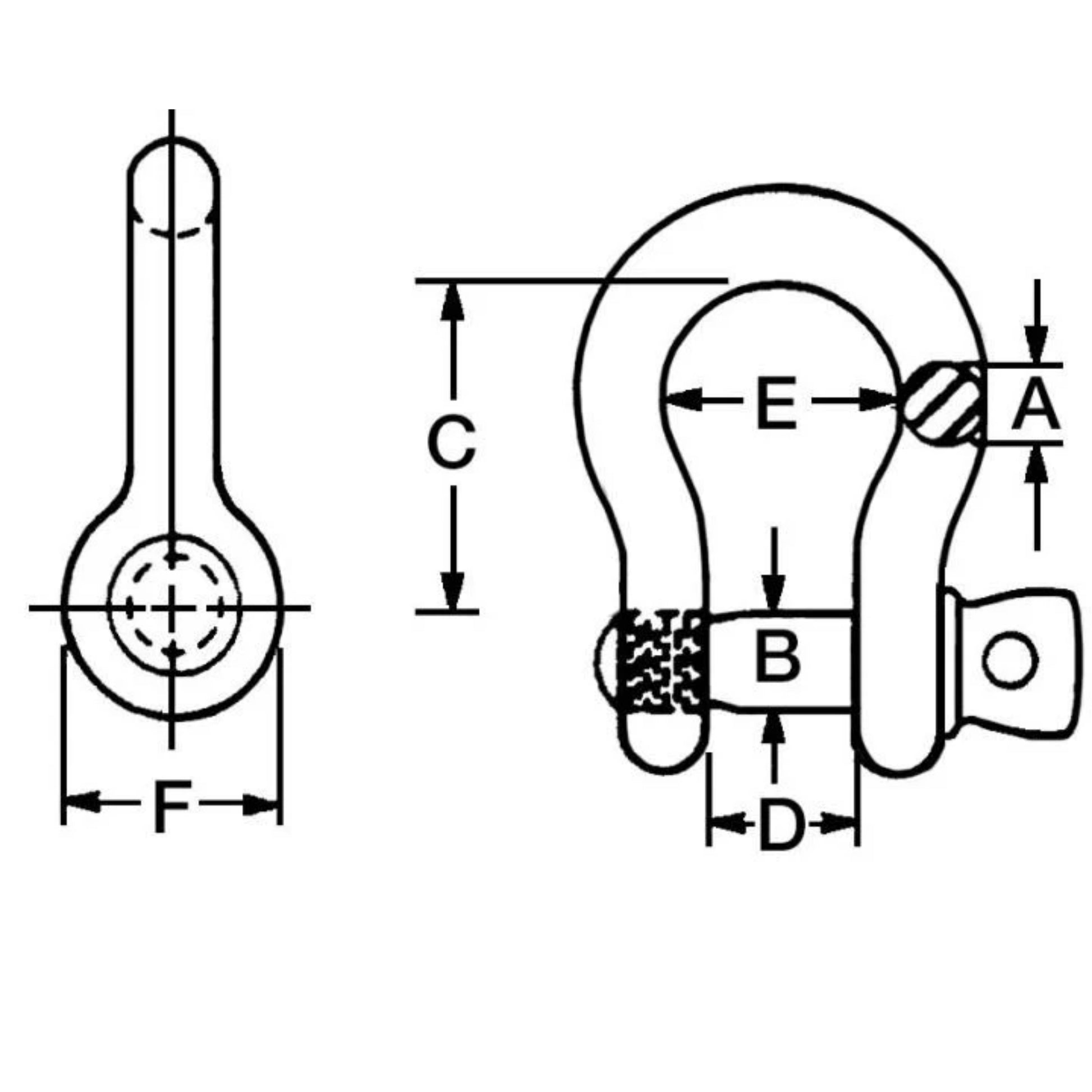

  • A technical drawing of the Campbell USA Anchor Shackle in blue with detailed dimensions labeled. The Anchor Shackle consists of a U-shaped piece with a pin across the opening. Dimensions A, B, C, D, E, and F are marked to indicate various measurements of its parts.

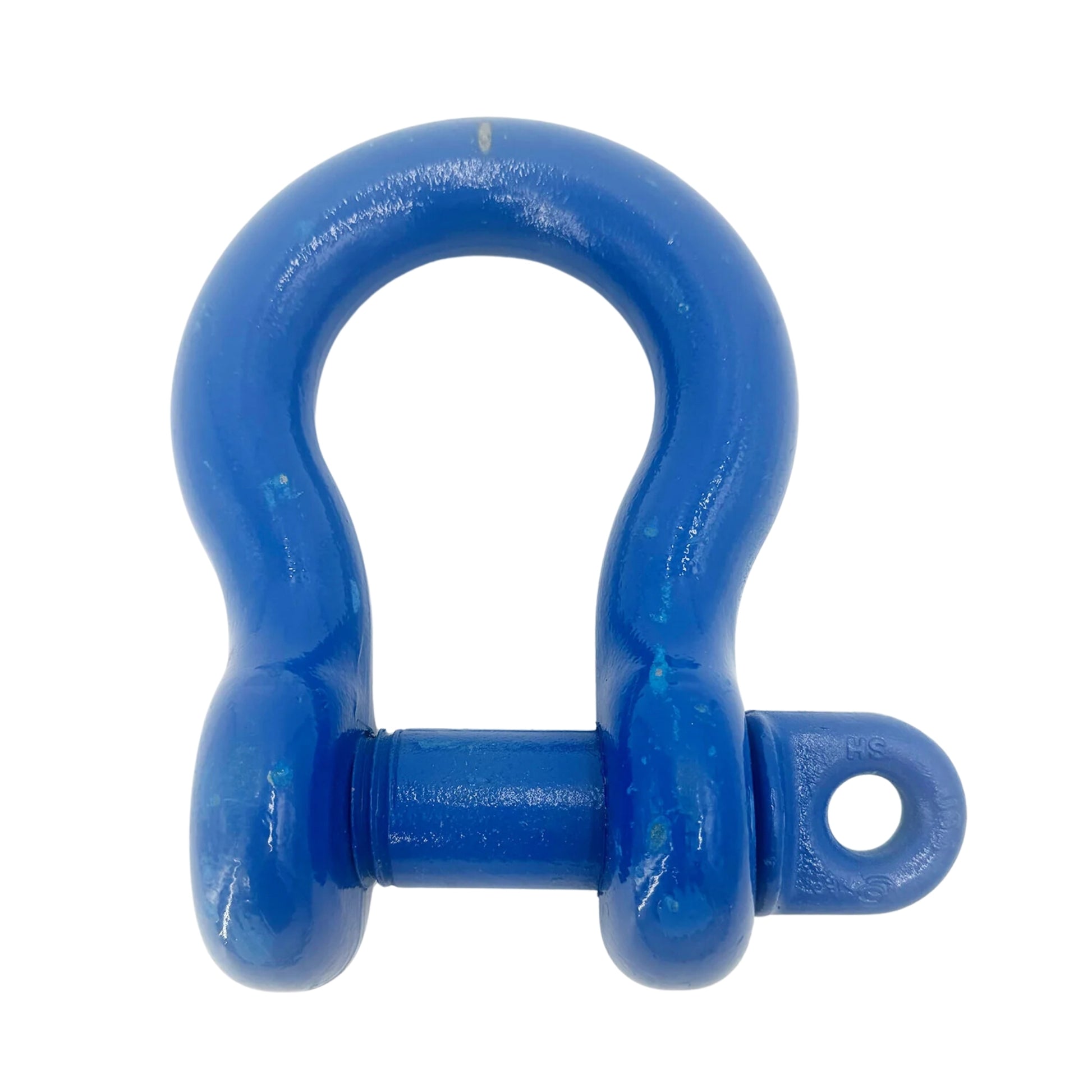

  • A blue Anchor Shackle with threaded pin rests on a white background.

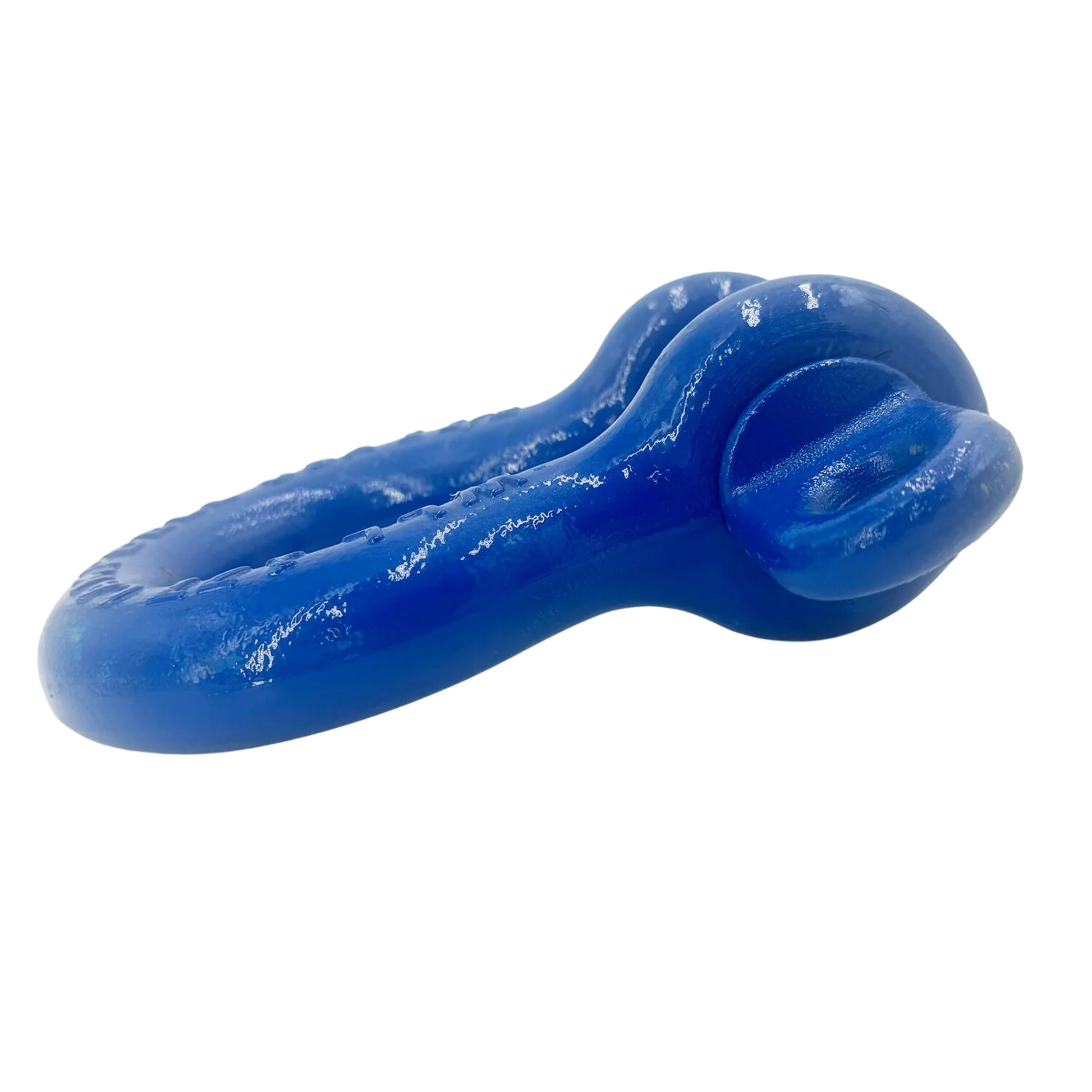

  • Close-up of a bright blue Anchor Shackle by Campbell USA, showcasing its metal oblong ring with a textured surface and a welded, thicker section on one end.
1 4

Container Nut

Campbell USA Anchor Shackle | 17 T - WLL | SINGLE

Campbell USA Anchor Shackle | 17 T - WLL | SINGLE

$104.99 USD
$104.99 USD
Sale Sold out
Shipping calculated at checkout.

1-1/2" Anchor Shackle, Screw Pin, Forged Carbon Steel, Painted Blue

  • Shackle Bodies Are Drop-Forged Carbon Steel
  • Self Colored (Painted Blue)
  • C-419-S Shackles Meet the Design Requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 2
  • Working Load Limit, Size, Manufacture Name, Date Code and USA Permanently Marked on Each Shackle
  • Statistically Tested for Impact Resistance, Tensile Strength, Hardness, Ductility and Fatigue
  • 419 Series Shackles Meet or Exceed All Manufacturing Requirements of the ASME B30.26 ”Rigging Hardware”. These Include the Material Ductility Requirement (Section 26-1.1.2), the Design Factor Requirement (Section 26.1.2), the Identification Requirement (Section 26-1.5.1), and the Effective Temperature Range (Section 26-1.6.1). the Shackles Can Be Proof Tested in Accordance with Section 26-1.4
  • Certification Available Upon Request
  • 6 to 1 Design Factor
  • Pins and Bolts Are Heat-Treated and Made of Alloy Steel
  • DO NOT EXCEED THE WORKING LOAD LIMIT
Size Fractional 1-1/2 in
B Dimension 1-5/8 in
C Dimension 5-3/4 in
D Dimension 2-3/8 in
E Dimension 3-7/8 in
F Dimension 3-1/2 in
Working Load Limit 17 T
Width Tolerance (+/-) 3/16 in
Length Tolerance (+/-) 1/4 in

Container Nut is registered with SAM.gov and Cage Code Certified. Please email if you are in need of our Cage Code.
